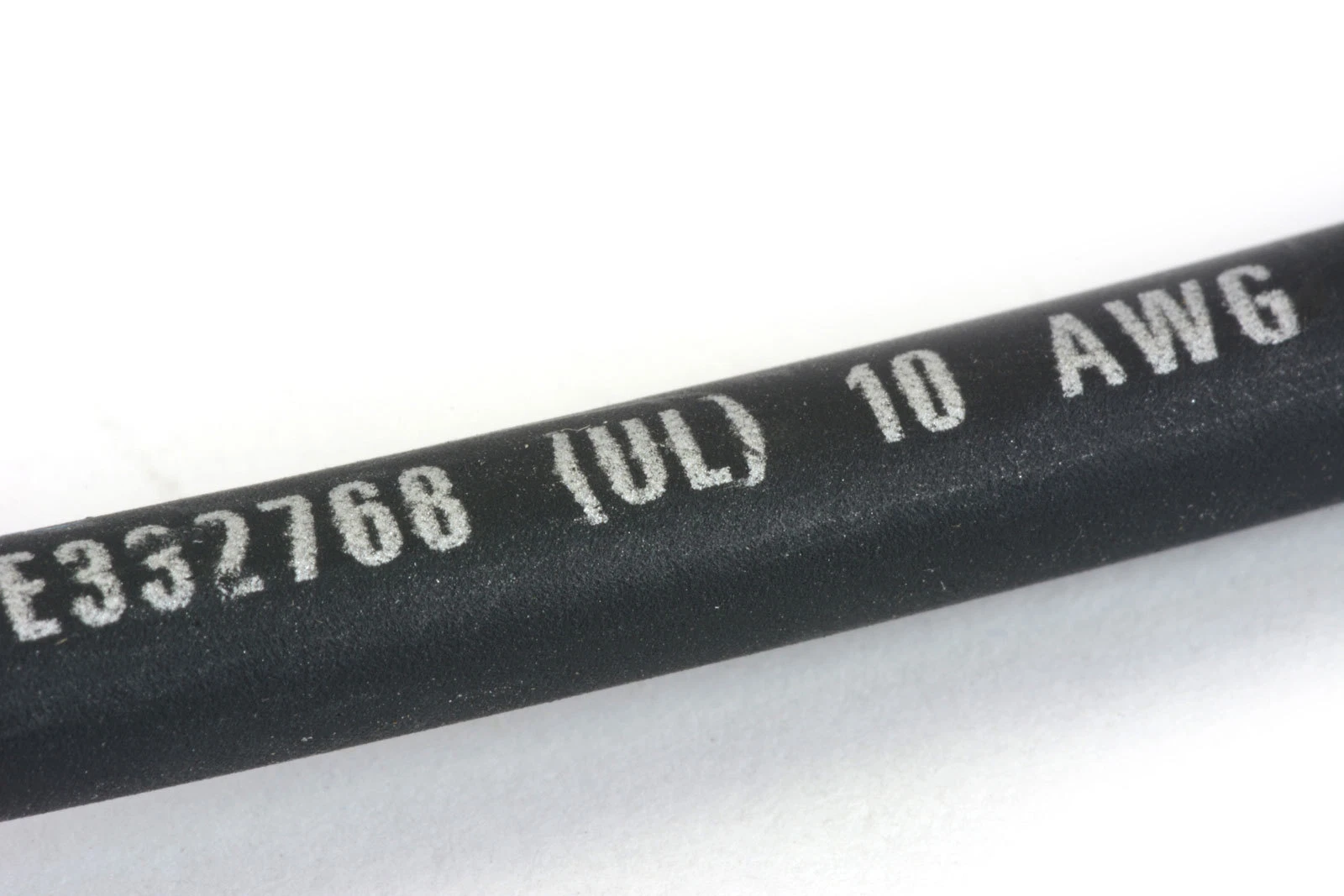

10 AWG Solar Panel Wire 50' Power Cable UL 4703 Copper MADE IN USA PV Gauge

TEMCo PV Solar Wire is designed for use in photovoltaic power systems and other outdoor electrical applications. Made in the USA with 19-strand pure copper conductors (no CCA), the wire provides reliable conductivity and semi-flexible handling for easier installation. The XLPE (Cross-Linked Polyethylene) insulation resists heat, UV, chemicals, and abrasion, making it suitable for long-term outdoor use. This wire is rated 600 VDC, supports operating temperatures from -40°C to 90°C, and is direct burial rated for installation above ground, in conduit, or underground without additional protection. It meets UL 4703 standards for photovoltaic wire, ensuring safe and consistent performance in solar power systems. Key Features: Conductor: Stranded bare copper Flexibility: Semi-flexible for easier installation and routing Insulation: XLPE (Cross-Linked Polyethylene) Direct Burial Rated: Suitable for underground installation Standards: UL 4703 photovoltaic wire Origin: Made in the USA Durability: Resistant to sunlight, heat, chemicals, and abrasion Applications: Solar panels, photovoltaic systems, outdoor electrical use.

• Made in the USA, 10 AWG PV wire manufactured in the United States with quality standards.

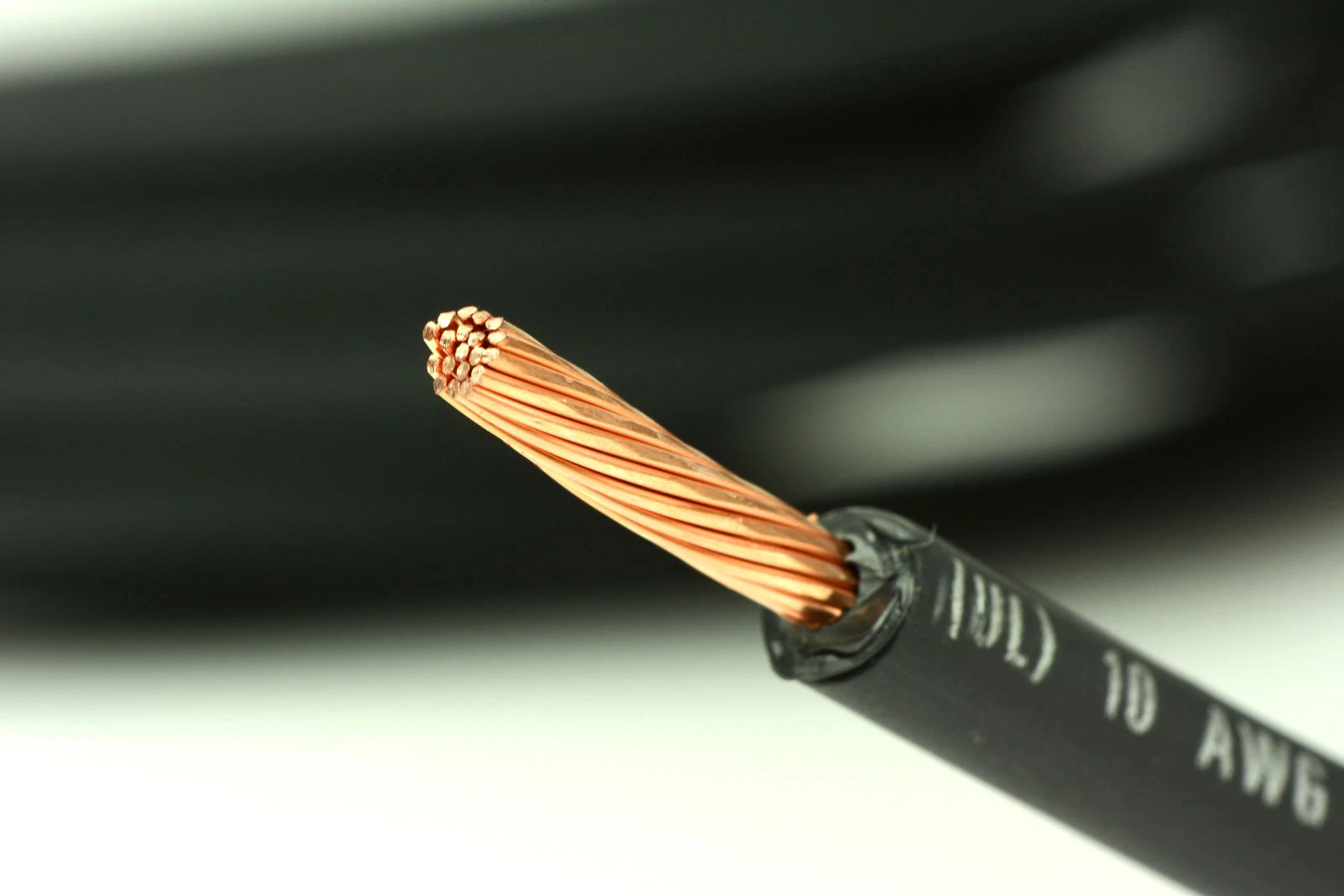

• 19-Strand Pure Copper (No CCA), Provides reliable conductivity and flexibility. XLPE insulation
• Electrical Ratings, 600 VDC, 50 amps, temperature range -40°C to 90°C.
• Physical Specs ? 17.54 feet per pound, nominal outside diameter: 0.230 in.
• Direct Burial Rated, Safe for underground or exposed installations without conduit
• Meets UL 4703, CSA RPVU90/RPV90, NEC 338 and 690, USE-2, Service-Entrance Cable, RoHS compliant
